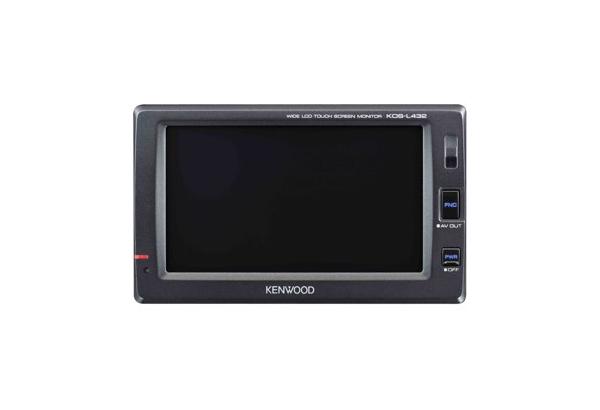

KOS-L432
4” Wide (On-dash) monitor with touch screen control for KOS-V500/1000
Key Features
| Optional Monitor for KOS-V1000 & KOS-V500 |
| 4,3 inch Wide Colour TFT Active Matrix Display |
| Interactive Touch Panel Control |
| On-Dash Installation bracket included |
| QVGA video interface |
Monitor Features
| In-Dash/On-Dash | On-Dash |
| Screen Type | TFT 3.4" |
| Touch Panel | |
| Display Mode | 5 Mode (Full/Just/Cinema/Zoom/Normal) |
| Screen Adjustments | Brigtness/Tint/Color/Contrast/Black Level/Dimmer |
| Dimmer function | Automatic |
| Mechanism type | Quick Release |
Monitor Specifications
| Screen size (Diagonal) | 4.3 Inches Wide |
| Screen Size (WxH) | 95 x 93.9mm |
| Display system | Transmissive, micro reflective type, VA mode LCD panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 391680pixels (480(H) x 272(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | LED |
General Specifications
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 0.25A |
| Dimensions (WxHxD) | 125 x 75 x 18.5mm |
| Weight | 150 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Storage Temperature Range | -20°C ~ 70°C |
Accessories
| Monitor Cable |
| Monitor stand |
