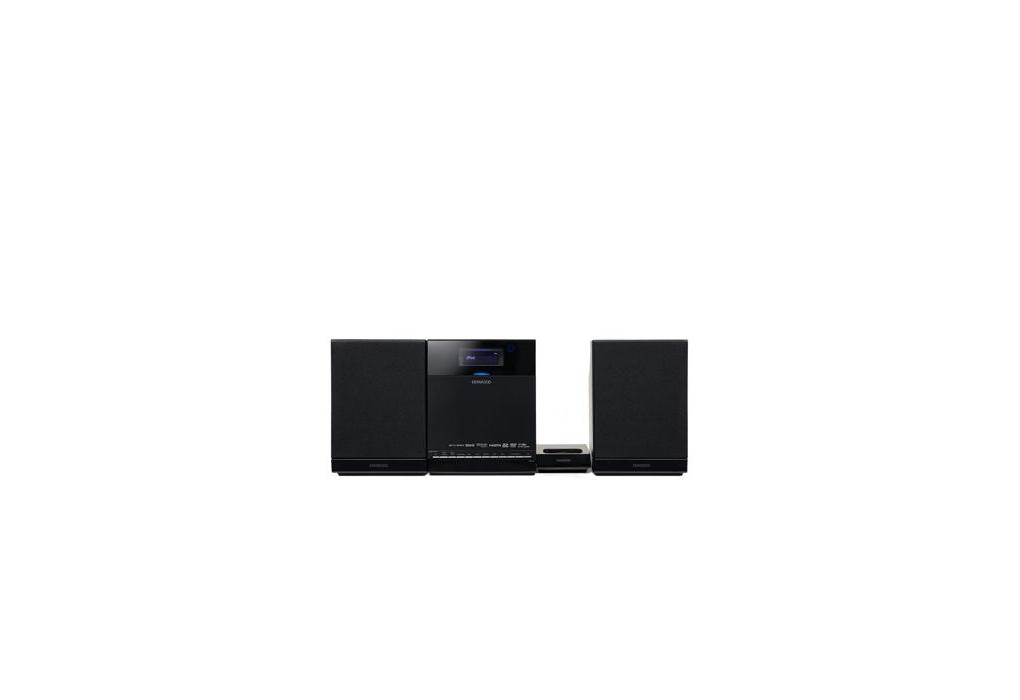

C-717DV
Compact Hifi Component System with DVD player, USB Host function, SD card slot and iPod/iPhone dock
The C-717DV is not only stylish and compact but also innovative in every way. It facilitates connection to iPods/iPhones via a supplied dock, and plays CDs/DVDs to enhance home cinema entertainment.
Key Features
| Stylish and compact Home Cinema System |
| 20W x 2 Full digital amplifier for exceptional sound quality |
| Output to an optional powered subwoofer (SW-21HT) for full, rich sound reproduction. |
| Includes CD/DVD (with HDMI connection) slot, iPod/iPhone dock, USB port and SD slot |
| DTS Envelo Speaker for an extra boost in soundquality. |
General Features
| DTS Envelo Speaker | ON:1, ON:2 or OFF |
| Equalizer | 6 Presets (Pop/Classic/Rock/Jazz/Game/Flat) |
| D-Bass | Yes (0~10) |
| Remote Control | 50-key Standard Remote |
Tuner Features
| Tuner (AM/FM) | Yes |
| Radio Data System | Yes |
| Radio Text | Yes |
| Program Type (PTY) | Yes |
| Number of Presets (DAB) | 40 |
Audio Features
| Equalizer | 6 Presets (Pop/Classic/Rock/Jazz/Game/Flat) |
| D-Bass | Yes (0~10) |
Surround Formats
| Dolby Digital | Yes |
HE_ iPod_Dock_Feat
| iPod/iPhone Connection | iPod direct connection (Dock) with charge function |
| Supported iPod/iPhone models | iPod nano (2st -6th gen.), iPod Classic, iPod touch (1st - 4th gen.)
iPhone, iPhone 3G, iPhone 3GS, iPhone 4 |
| iPod/iPhone Control Functions | Play/Pause, Skip for-/backwards, Fast for-/backwards, Album next/back, Repeat function, Random access, Video Playback. |
Playable Media
DVD Conveniences
| On-screen Display | Yes |
| Parental Control | Yes |
| Fast/Slow motion Playback | Yes |
| Frame Forward/Backward & Freeze Frame | Yes |
| Program Playback | Yes |
| Repeat Playback | Chapter / Title / All |
| Random Playback | Yes |
CD Features
| CD DA / CD-R/RW | Yes |
| MP3 | Yes |
| WMA | Yes |
| CD Text | Yes |
| Program Playback | Yes |
| Repeat Playback | One / All |
| Random Playback | Yes |
Digital Inputs/Outputs
Analogue Inputs/Outputs
| RCA Audio/Video Inputs | 1 Audio |
| Composite Video Output | Yes |
| Component Video Output | Yes |
| Pre-outputs | Subwoofer |
| Subwoofer Output | Yes |
| Push-type Speaker Terminals | No, special connector type (included) |
| Headphone Jack (3.5 mm) | Yes |
| D.A.P. Link Terminal | analogue 3.5 mm |
| 75 Ohm FM Antenna Connector | Yes |
| AM Antenna Connector | Yes |
Amplifier Features
| Maximum Stereo Output Power | 2 x 20 Watt |
| Digital Amplifier | Yes |
Speakers
| Type | Bookshelf Speaker, Wall Mount Possible |
| Configuration | 2-Way, 2-Speaker Bass Reflex |
| Magnetically Shielded | Yes |
| Grill | Fixed |
| Wall Mount Hole | Yes |
Audio Specifications
| DIN Music Power | 2 x 20 Watt |
| Effective Output Power | 2 x 20 Watt (1kHz, THD 10%, 8Ω) |
| Input Sensitivity/Impedance: Line (AUX) | 500mV / 10kΩ |
| Input Sensitivity/Impedance: Line (D.Audio) | 500mV / 10kΩ |
| Output Level/Impedance: Subwoofer Pre-Out | 1.5V / 10kΩ |
Video Specifications MPEG
| File Format | MPEG 1/2 |
| Extension | .mpg, .mpeg, .m1v, .m2v |
| Picture Size | 720x480, 720x576 |
| Profile & Level | MP@ML (Main Profile at Main Level |
| Audio Format | MPEG Audio Layer 2/3 |
| Audio Sampling Frequencies | 32/44.1/48kHz |
| Audio bit rate | 32-384kbps (only constant bit rates) |
| File size | Max. 4Gb |
Video Specifications DivX
| File Format | DivX |
| Extension | .divx, .div, .avi |
| Picture Size | 352x240, 352x288, 720x480, 720x576 |
| Audio Format | MP3, Dolby Digital |
| Audio Sampling Frequencies | 32/44.1/48kHz |
| Audio bit rate | 32-384kbps (only constant bit rates) |
| File size | Max. 4Gb |
Picture Specifications JPEG
| File Format | JPEG |
| Extension | .jpg, .jpeg |
| Baseline format | Up to a maximum of 8192(W)x7680(H)pixels |
| File size | Max. 4Mb |
Tuner Specifications
| FM Tuning Frequency Range | 87.5 ~ 108MHz |
| Antenna Impedance | 75 Ω unbalanced |
| AM Tuning Frequency Range | 531 ~ 1602kHz |
USB Specifications
| Format | USB Host (Playback) |
| USB Standard | 1.1 / 2.0 |
| MP3 Sampling Frequency (Stereo) | 8/11.025/12/16/22.05/32/44.1/48kHz |
| MP3 Bitrate (CBR/VBR) | 8 kbps to 320 kbps |
| WMA Sampling Frequency (Stereo) | 32/44.1/48kHz |
| WMA Bitrate (CBR/VBR) | 32 kbps to 320 kbps |
| ID3 tag | Version 1.0/1.1/2.2/2.3 |
| Maximum Folders | 130 |
| Maximum Files per Folder | 999 |
| Maximum Current Supply | 500mA |
| File System | FAT 16 / 32 |
| MP3 Decoding | Compliant with MPEG-1/2 Audio Layer 3 |
| WMA Decoding | Windows Media Audio Compliant |
| Maximum number of displayable characters | File/Folder name: 30/ 9 characters
MP3 ID3 TAG/ WMA Contents property: 30 characters WMA Contents property (album name): 14 characters |
CD Player Specifications
| Type | Semiconductor laser |
| Supporting Disc Format | ISO 9660 Level 1/2 Joliet |
| Oversampling | 8fs (352.8kHz) |
| D/A Conversion | 1-bit |
| MP3/WMA Maximum Folders | 130 |
| MP3/WMA Maximum Files | 512 |
| ID3 tag | Yes, 1.0/1.1/2.2/2.3/2.4 |
| Maximum number of displayable characters |
File/Folder name: 30/ 9 characters MP3 ID3 TAG/ WMA Contents property: 30 characters WMA Contents property (album name): 14 characters |
HE_SD_Specs
| SD Format | SD memory card (Playback) |
| Usable SD cards | SD/SDHC, miniSD, microSD/SDHC card (special adapter required for mini and micro SD card.) |
| Supporting SD card capacity | 512MB - 32GB |
| File System | FAT 16/32 |
| ID3 tag | version 1.0/1.1/2.2/2.3/2.4 |
| Maximum number of displayable characters | File/Folder name: 30/ 9 characters
MP3 ID3 TAG/ WMA Contents property: 30 characters WMA Contents property (album name): 14 characters |
| Maximum Folders | 130 |
| Maximum Files per Folder | 999 |
| MP3 Sampling Frequency (Stereo) | 8/11.025/12/16/22.05/32/44.1/48kHz |
| MP3 Bitrate (CBR/VBR) | 8 kbps to 320 kbps |
| WMA Sampling Frequency (Stereo) | 32/44.1/48kHz |
| WMA Bitrate (CBR/VBR) | 32 kbps to 320 kbps |
| MP3 Decoding | Compliant with MPEG-1/2 Audio Layer 3 |
| WMA Decoding | Windows Media Audio Compliant |
Speaker Specifications
| Impedance | 8Ω |
| Nominal input power | 20 Watt |
| Max. input power | 20 Watt |
| Tweeter | 36mm, cone type |
| Woofer | 86mm, cone type |
| Speaker | Bass-reflex type |
General Specifications
| Display Type | Dot Matrix |
Power Specifications
| Power Consumption | 30 Watt |
| Stand-by Power Consumption (less than) | 1 Watt |
| Adaptor AC-DC | Input 230-240VAC 50-60Hz 1.5A 60W Output 18VDC 3.35A |
Dimensions & Weight
| Dimensions Body (WxHxD) | 190 x 240 x 142 mm |
| Dimensions Speaker (WxHxD) | 170 x 238 x 132 mm |
| Weight Body (Net) | 1.4kg |
| Weight Speaker (Net) | 1.1kg per piece |
