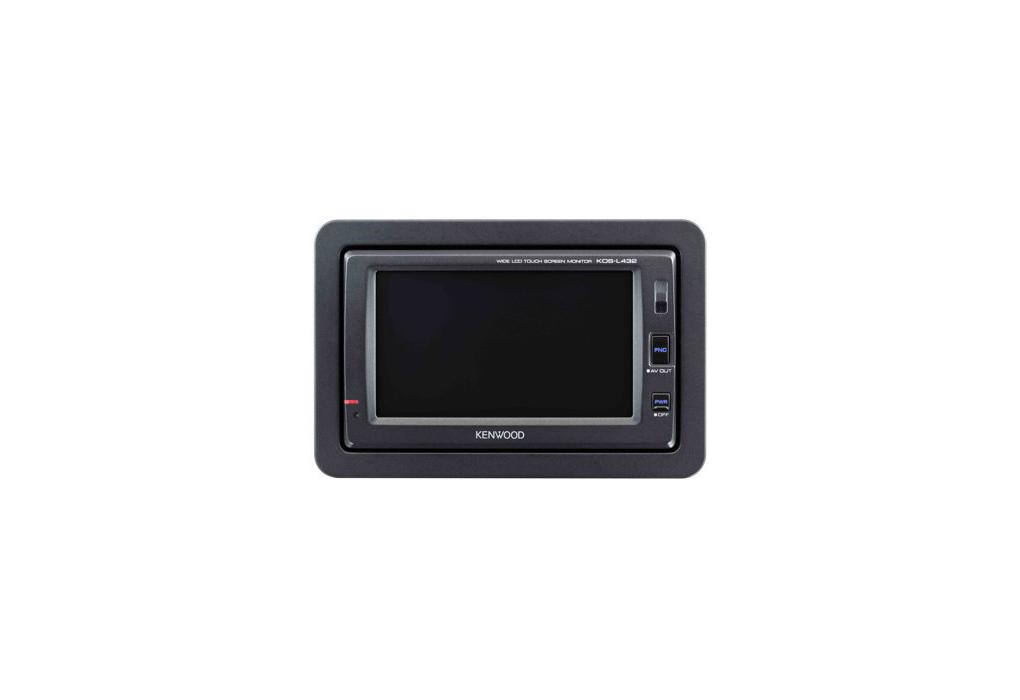

| Key Features | Optional Monitor for KOS-V1000 & KOS-V500 | |
| 4,3 inch Wide Colour TFT Active Matrix Display | ||
| Interactive Touch Panel Control | ||
| On-Dash Installation bracket included | ||
| QVGA video interface | ||
| Monitor Features | In-Dash/On-Dash | On-Dash |
| Screen Type | TFT 3.4" | |
| Touch Panel | ||
| Display Mode | 5 Mode (Full/Just/Cinema/Zoom/Normal) | |
| Screen Adjustments | Brigtness/Tint/Color/Contrast/Black Level/Dimmer | |
| Dimmer function | Automatic | |
| Mechanism type | Quick Release |
| Monitor Specifications | Screen size (Diagonal) | 4.3 Inches Wide |
| Screen Size (WxH) | 95 x 93.9mm | |
| Display system | Transmissive, micro reflective type, VA mode LCD panel | |
| Drive system | TFT Active Matrix System | |
| Number of Pixels | 391680pixels (480(H) x 272(V) x RGB) | |
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB Striped | |
| Back lighting | LED |
| General Specifications | Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 0.25A | |
| Dimensions (WxHxD) | 125 x 75 x 18.5mm | |
| Weight | 150 gr. | |
| Operation Temperature Range | -10°C ~ 60°C | |
| Storage Temperature Range | -20°C ~ 70°C |
| Accessories | Monitor Cable | |
| Monitor stand | ||
