KDV-5244U
  • KDV-5244U
  • KDV-5244U

Additional Images

KDV-5244U

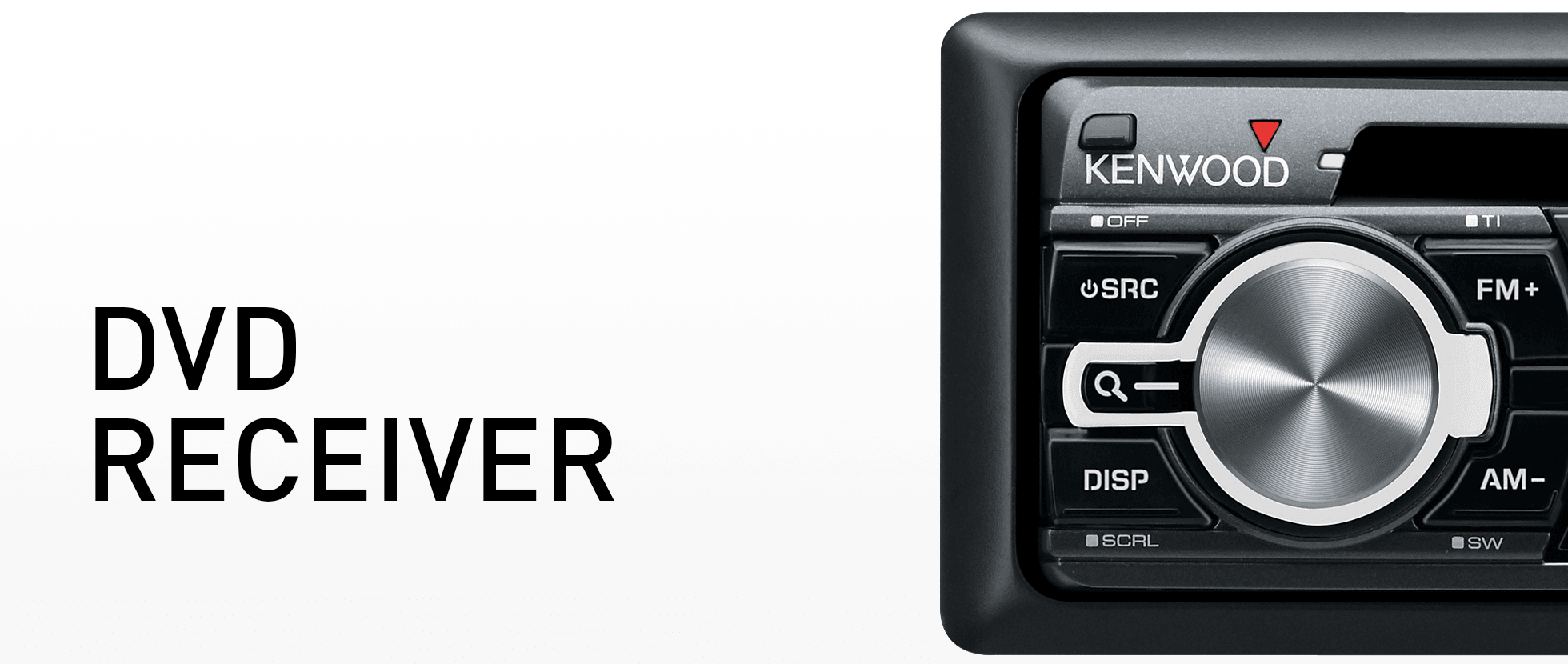

DVD-Receiver with USB Interface

Additional Information:



  • Compatibility:
    iPod / iPhone
    On this page you can verify if your iPod / iPhone is compatible with our Multimedia system and give you an advise of witch accessory to use.

  • Up 2 Date:
    Kenwood is continuously improving its products. The following page lists all updates available for your device.

  • Specifications for audio, video en picture files:
    Here you can find all detailed technical information.

  • Detachable Faceplate
  • Made for iPod & iPhone *
  • IR remote controller included
  • Equalizer built-in

Key Features

DVD, DivX, mpeg1/2, JPEG, MP3,WMA,WAV playback
Front AV (mini-jack)input + USB input
Bluetooth handsfree + audio streaming with optional KCA-BT200
Sound Excellence DSP
IR remote controller included
iPod direct control with optional KCA-ip240V

General Features

DIN Size1 DIN
Detachable FaceplateYes
Protection Case For FaceplateYes
Faceplate MechanismFull Detachable Faceplate
Security Code FunctionYes
Key IlluminationBlue
Rotary Encoder & Control KnobYes
Multi control wheelYes
Music Search functionYes
Attenuator with Smooth Volume ReturnYes
Touch Sensor ToneYes
IR remote controller includedRC-DV340
Digital Clock (24H)Yes
Built-in ConnectorMolex 16 pin
ISO connectorYes
Optional Bluetooth unitYes, KCA-BT200

Display Features

Display TypeFlourescent (FL) Tube Display
Display Layout14 segments x 8 Characters
Display IlluminationFluoricent Display
Spectrum Analyzer
Dimmer Control2 steps - Manual
Demo ModeYes
Special Character DisplayRussian Characters
Menu text in selectable language

Tuner Features

K3I - Clean Reception TunerYes
FM ReceptionYes
FM Stereo / Mono SelectorYes
AM (MW/LW) ReceptionYes
Tuning mode
Up/Down Seek/ScanYes
Presets24 Presets (18FM / 3LW / 3MW)
Automatic Memory Entry (AME)Yes
Radio Data SystemYes
Radio TextYes
Enhanced Other Networks Function (EON)Yes
Program Type Function (PTY)Yes

CD Features

CD-R/RW CompatibleYes
MP3 Playback with ID3 Tag DisplayYes
WMA (Windows Media Audio) PlaybackYes
WAV (Waveform Audio Format) PlaybackYes
CD Text SupportYes
D.A.C. processing24 bit
Random Function
Repeat Function
Scan Function

DVD-Features

Disc Capacity1 Disc(s)
DVD Region Code2
VCD CompatibleYes
DVD±R/RW CompatibleYes
CD-R/RW CompatibleYes
CD-DA Repeat/Scan/Random playYes
CD Text
MP3Yes
ID3 TagYes
WMAYes
WMA TagYes
WAVYes
MPEG1/2 Video File (.mpg) CompatibleYes
JPEG File (.jpg) CompatibleYes
DivX (Certified)Yes
Digital/Analog Converter24 bit
On screen display (OSD)Yes

USB Features

USB terminalYes
USB TypeUSB1.1 / USB 2.0
MP3 playback with ID3 Tag DisplayYes
WMA (Windows Media File) playbackYes
WAV (Waveform Audio Format) playbackYes
MPEG1 Video decoderYes
MPEG2 Video DecoderYes
DivX Video DecoderYes

iPod Features

Made for iPod & iPhone *Yes
iPod control by 5L busYes, with optional KCA-iP500
USB Direct Control (Audio & Video, 2 wire, 30-pin connector)with optional KCA-iP240V
Music playbackYes
Video playbackYes
Music library searchYes
Alphabet searchYes
Skip searchYes
Control by handYes
Works with iPod Classic *
Works with iPod Video *5th/6th generation
Works with iPod Touch *1st/2nd Gen
Works with iPod Nano *1st/2nd/3rd/4th Gen
Works with iPhone *iPhone, iPhone 3G & iPhone 3GS
Battery charge + power controlYes
* Always update to latest Apple firmware

External Media Control Features

Dual Changer Control (CH1, CH2 & AUX)Yes
CD Text Ready with Compatible KENWOOD UnitsYes
Disc & Track RepeatYes
Disc & Track ScanYes
Disc & Track Random PlayYes
Bluetooth HandsfreeYes
Bluetooth Audio StreamingYes
iPod Control with KCA-iP500Yes

Audio Features

Maximum Output Power50W x 4
MOSFET Power ICYes
Auxiliary inputYes, Front AV-input
Pre-out2 RCA
Pre-out Output Level2.5V
Preout Rear / Subwoofer SwitchableYes
Subwoofer Reference Level Adj.Yes
Dual-Zone Source & Volume ControlYes
Dual-Zone (FRONT / REAR Switchable)Yes
Source Tone Control & MemoryBass / Mid / Treble
Balance/Fader/Loudness ControlYes
Bass Boost Circuit
Att.(-20dB) with smooth Volume ReturnYes
System Q (Preset Sound Control)Yes
Equalizer built-inYes

Connectivity

External Media Control Bus (5L)Yes
iPod I/F Control (5L-Bus)Yes
Bluetooth Control (5L-Bus)Yes
USB interface
Parking sensor (handbrake) wireYes
Power Control (P.CON) wireYes
2-way (Tel/Navi) mute wireYes
Dimmer control wireYes

Tuner Specifications

FM Frequency range (50kHz step)87.5MHz ~ 108MHz
FM Usable Sensitivity0.7μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity1.6μV/75ohm (S/N 46dBf)
FM Frequency Response30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN)over 80dB (±400kHz)
FM Stereo Separation (1kHz)35dB
MW Frequency Range531kHz ~ 1611kHz (9kHz step)
MW Frequency step9kHz
MW Usable Sensitivity25μV
LW Frequency Range153kHz ~ 281kHz (9kHz step)
LW Usable Sensitivity45μV

DVD Specifications

D/A Converter24 bit
Video decoderMPEG1/MPEG2/DivX (Max 2Mbps)
Audio decoderMP3/WMA/WAV(Linear PCM)
Wow & FlutterBelow Measurable Limit
Freq. Resp. (96kHz Sampling)16Hz ~ 22kHz
Freq. Resp. (48kHz Sampling)16Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling)16Hz ~ 20kHz
Signal to Noise Ratio95dB (1kHz)
Dynamic Range100dB
Disc FormatDVD-Video/Video-CD/CD-DA
Sample Frequency96k, 48k, 44,1k

Video Specifications

Color System of External Video InputPAL
External Video Input Level (RCA)1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA)1200 V / 10 kOhm
Video Output Level (RCA)1 Vpp / 75 Ohm
Audio Output Level (RCA)2.5 Vpp / 10 kOhm

USB Specifications

USB Version compatibility1.1 / 2.0
File SystemFAT 16/32
Maximum Supply current500mA
D/A Converter24 bit
MP3 DecodeCompliant with MPEG-1/2 Audio Layer-3
WMA DecodeCompliant with Windows Media Audio
WAV DecodeLinear - PCM Files
Max. nr. of files65025
Max. nr. of folders255
Max. nr. of files per folder255
Max. characters for file & folder name65
Max. nr. of characters for file names64
Max. nr. of characters for folder names64
Max. nr. of characters for MP3 tags30
Max. nr. of characters for WAV-tags30
Max. nr. of characters for WMA-tags30

Audio Specifications

Maximum Power50W x 4
Output Power (DIN45324,+B=14.4v)30W x 4
Preout Level2500mV / 10kOhm,
Preout Impedance≤ 600Ohm
Speaker Impedance4Ohm ~ 8Ohm
AUX Maximum Input Voltage1200mV
AUX Input Impedance10kOhm

General Specifications

Operating voltage14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption10A
Dimensions (WxHxD)182 x 53 x 159mm
Weight1400 gr.
Instruction ManualsENG/FRE/GER/DUT/ITA/SPA/POR
