KFC-S1366

STAGE SOUND SERIES, 13cm Flush Mount 2-way 2-Speaker System


Key Features

STAGE SOUND SERIES
Flush Mount Speaker
2-Way 2-Speaker System
13 cm Polypropylene Woofer Cone
Heavy-Duty Woofer Magnet Circuit
25mm Blanced Dome Tweeter

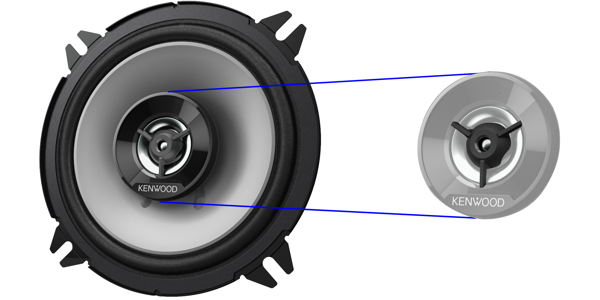

Tweeter Sound Field Enhancer & Electro-Dynamic Driver
260W Peak Power
30W RMS Power
Speaker grill included

Speaker/woofer Specifications

Peak Input Power260W
Rated Input Power30W
Woofer Cone materialPolypropylene (PP) Cone
Speaker BasketSteel
Speaker SurroundRubber
Sensitivity89dB/W/m
Frequency Response45Hz ~ 22000Hz
Speaker Impedance4Ω
Dimensions with Grill (WxHxD)157 x 157 x 65.7mm
Dimensions w/o Grill (WxHxD)130 x 130 x 51mm
Mounting Depth43.7mm
Mouting Hole Diameter Ø114mm
Tweeter Height7.3mm
Speaker Weight with Grille (pc.)475gr
Speaker Weight w/o Grille (pc.)423gr
Gross Weight1013gr
Weight of Magnet160gr

Tweeter Specifications

Cone Size25mm
Cone MaterialBalanced Dome

Accessories

Screws (Parker-type)Ø 4 x 25mm, 8 pieces
Speed nutφ 4, 8 pieces
Grille assembly includedYes
Speaker cable0.3m
